Hydraulic Roller Briquetting Production Line

Fully hydraulic high-pressure forming for fine and hard-to-briquette materials.

Production Line Overview

Main equipment of the production line

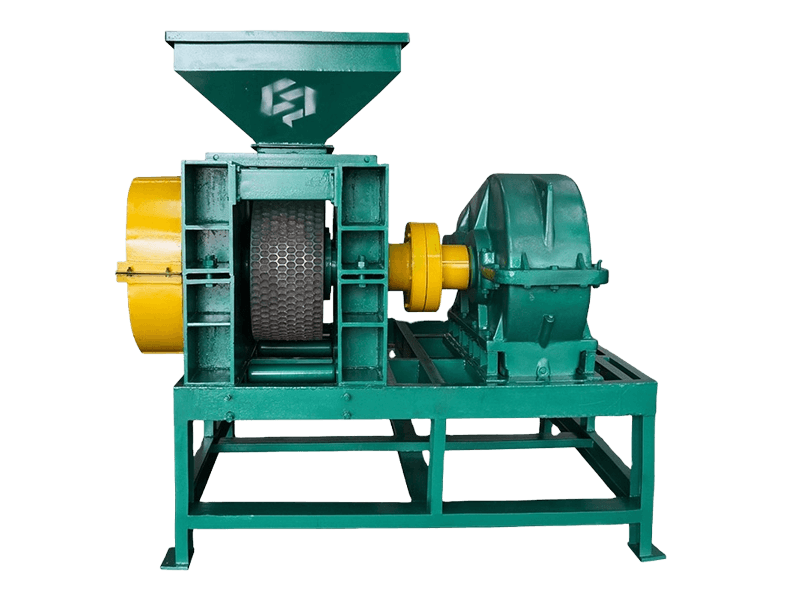

The hydraulic roller briquette press adopts a full hydraulic drive system, delivering extremely high and precisely controllable forming pressure.

Compared with mechanical briquetting machines, it offers superior pressure control, higher briquette strength and enhanced equipment protection.

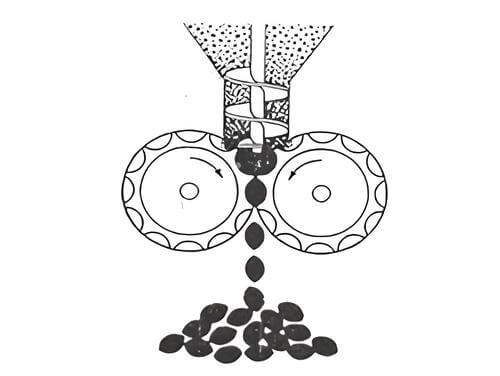

Synchronized double rollers with intelligent hydraulic control ensure stable high-density briquetting.

Extremely High & Adjustable Pressure
Hydraulic pressure can be precisely adjusted to suit different materials from charcoal fines to metal powders.
Outstanding Briquette Quality
Produces briquettes with maximum density, strength and durability.
Wide Material Applicability
Ideal for fine metal powders, abrasive minerals and low-binder applications.

Central hydraulic cylinders apply over 10–500 tons of controllable pressure for dense briquetting.

Automatically compensates material variations to ensure uniform briquettes.

Automatic pressure relief protects gears, bearings and molds.

Model	Capacity (t/h)	Motor Power (kW)	Roller Diameter (mm)	Roller Width (mm)	Weight (t)	Overall Dimension (m)
HSYQH-290	3	7.5	290	200	1.5	1.8 × 1.35 × 1.85
HSYQH-360	5	15–18.5	360	240	2.5	1.8 × 1.5 × 1.8
HSYQH-400	6	15–18.5	400	240	2.8	2.1 × 1.5 × 1.9
HSYQH-450	8	37	450	250	6.3	3 × 2.8 × 2.6
HSYQH-500	15	37	500	300	6.1	3 × 2.2 × 2.6
HSYQH-520	6–10	55	520	240	12	3.7 × 2.8 × 2.2
HSYQH-560	8	45	560	220	16	3.7 × 2.8 × 2.2
HSYQH-650	18	45	650	300	10	3 × 2.5 × 2.6
HSYQH-650	25	55	650	340	16	3 × 2.5 × 2.6
HSYQH-700	8–12	75	700	225	18	4 × 2.8 × 2.5
HSYQH-750	20–22	55	750	300	11	3 × 2.5 × 2.6
HSYQH-850	25	55	1000	300	14	3 × 2.8 × 2.6

Higher quality, more stable operation, wider adaptability

A complete solution delivering efficiency, reliability and high return on investment.
