Mechanical Pressure Roller Briquetting Production Line
High-efficiency cold briquetting solution converting industrial waste into high-value solid fuel
Product Overview

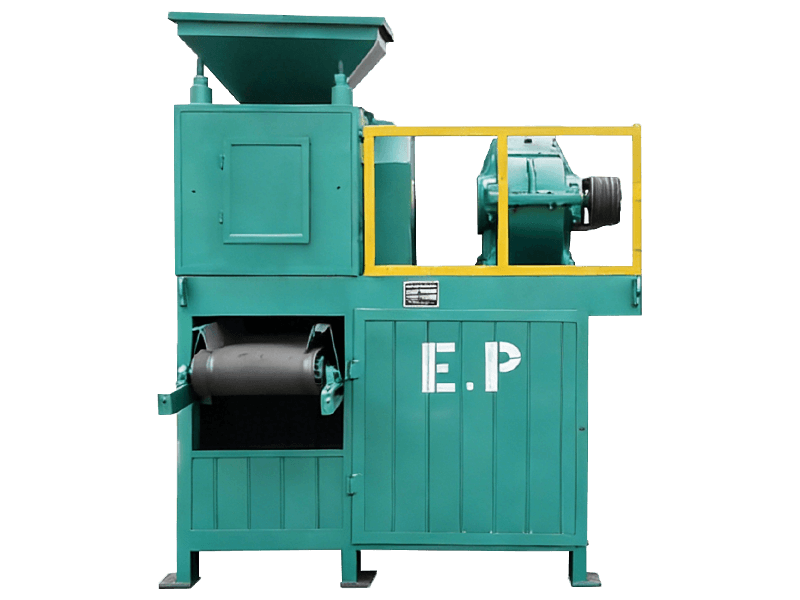

Mechanical Pressure Roller Briquette Machine
Efficient, durable and cost-effective briquetting solution
The Mechanical Pressure Roller Briquette Machine adopts a purely mechanical high-pressure cold briquetting principle to compress powdered, granular or flaky materials into dense and uniform briquettes.
By means of synchronized counter-rotating rollers and precision molds, industrial waste and by-product powders are transformed into easy-to-store, easy-to-transport and reusable solid fuel or recycled products.
Key Features & Advantages
High-pressure mechanical forming ensures efficient briquetting, stable operation and maximum utilization of industrial waste.
High-Efficiency Mechanical Compression
Applies 5–150 tons of mechanical pressure to form dense and stable briquettes with only 3–5% binder.

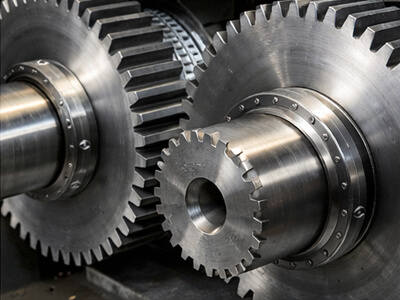

Synchronized Double Roller Drive
Precision gear transmission guarantees synchronized roller rotation and uniform briquette density.
Wide Material Adaptability

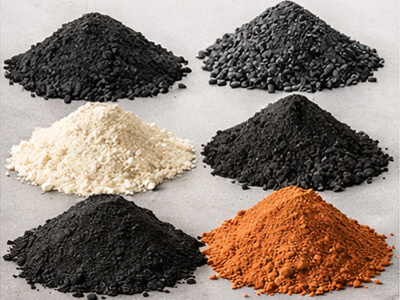

Suitable for coal fines, coke fines, charcoal powder, metallurgical dust, lime powder, mineral powder and chemical materials.

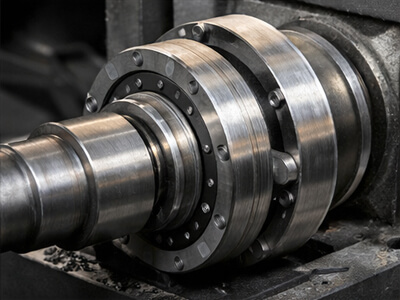

Robust Structure & Long Service Life
Key components are made of high-strength alloy steel and heavy-duty bearings for continuous operation.
Working Principle
Mechanical high-pressure forming ensures efficient and stable briquetting.
Preparation
Pre-treated materials enter the hopper evenly, binder can be added if required.

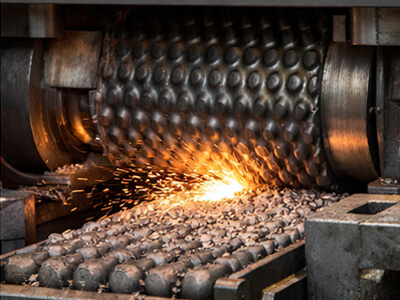

Compression
Materials are fed into the gap between two synchronized rollers under extreme pressure.
Forming
Particles are mechanically locked to form dense solid briquettes.
Discharge
Finished briquettes are released automatically and conveyed for collection.
Technical Parameters
| Model | Capacity (t/h) | Power (kW) | Reducer | Roller Diameter (mm) | Roller Width (mm) | Weight (t) | Overall Dimension (m) |
|---|---|---|---|---|---|---|---|
| HSYQM-290 | 1–2 | 7.5 | ZQ-350 | 290 | 200 | 0.85 | 1.8×1.35×1.85 |
| HSYQM-360 | 2–4 | 7.5 | ZQ-400 | 360 | 240 | 1.46 | 1.8×1.5×1.8 |
| HSYQM-400 | 4–6 | 15 | ZQ-400 | 400 | 240 | 1.65 | 2.1×1.5×1.9 |
| HSYQM-500 | 6–8 | 22 | ZQ-500 | 500 | 240 | 4.8 | 3×2.2×2.6 |
| HSYQM-600 | 10–12 | 30 | ZQ-650 | 600 | 375 | 7.5 | 3×2.5×2.1 |
| HSYQM-750 | 15 | 45 | ZQ-850 | 750 | 370 | 9.8 | 3×2.5×2.1 |
| HSYQM-850 | 18–20 | 55 | ZQ-1000 | 850 | 350 | 13 | 3×2.8×2.5 |
Application Areas
Why Choose E.P Machinery?
We provide turnkey roller briquetting solutions from design and manufacturing to installation and after-sales service.
